firelfy split 4k30fps camera

1, Specifications

DSP chipset: Ambarella A12S75

Sensor:SONY IMX117

Video resolution:4K(3840×2160) 30fps;2.7K 30fps 2.5K 60fps;1080P 120fps,1080P 60fps SuperView，720P 240fpsect

Photo resolution:16MP,12MP,8MP

2.4G WIFI+BT4.2(It can support app operation or Bluetooth remote control. WiFi module must be added)

GPS function (GPS data can be recorded in video. GPS module must be added)

HDMI+CVBS

Support high-definition image transmission through HDMI input by Herelink and others.

Support one click restore to default settings, no longer afraid of errors and exceptions! Press and hold the record button for 5 seconds in preview mode to restore the default settings.

Six axis Gyro video stabilization:EIS2.0

5-24V wide voltage range input

Type c USB port

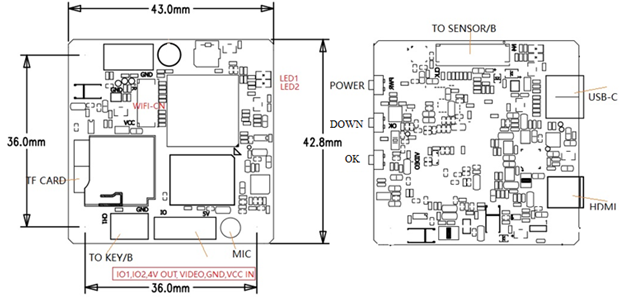

2, diagram

3, instructions

Many expansion interfaces are reserved on PCBA. It is convenient to add functions. For example, a serial port is reserved, which can be connected to the GPS module and save the GPS data to the video; ADC key interface is reserved. When the buttons on the board are not enough, many button functions can be added; Two IOS are reserved, which can be used to control motors or other equipment; Wide voltage 5-26v input and 4V output are reserved. Reserved functions can only be added when customers need them.

The length of the connecting cable between the lens module and the motherboard is 8cm FPC by default, and cables of different lengths can be customized. Max. 20cm.

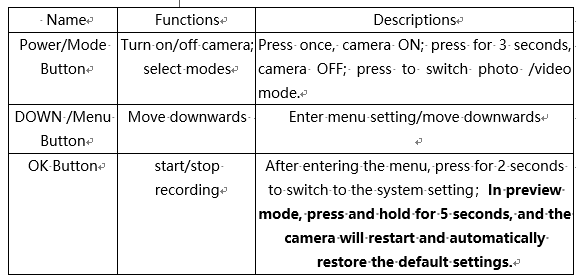

4,Button Functions
