firefly split 4k60fps camera

1, Specifications

DSP chipset: Ambarella H22S85

Sensor:SONY IMX577

Video resolution:4K(3840×2160)/60fps; 4K(4000*3000)/30fps; 4kUltra/30fps; 2.7K/60fps; 2.5K/60fps; 1080P/200fps; 720P 240fps ect

Photo resolution:16MP, 14MP, 12MP, 8MP ect

2.4G WIFI+BT4.2(It can support app operation or Bluetooth remote control. WiFi module must be added)

GPS function (GPS data can be recorded in video. GPS module must be added)

HDMI(HDMI supports 3840 * 2160/30fps maximum resolution output)+CVBS

Six axis Gyro video stabilization:EIS4.0

Support gyroscope data output as CVS document. Support GYROFLOW stabilization

support flat color, which is more flexible in post-processing

Support USB network interface function (special customized firmware is required)

Support one click restore to default settings, no longer afraid of errors and exceptions! Press and hold the record button for 5 seconds in preview mode to restore the default settings.

5-24V wide voltage range input

Type c USB port

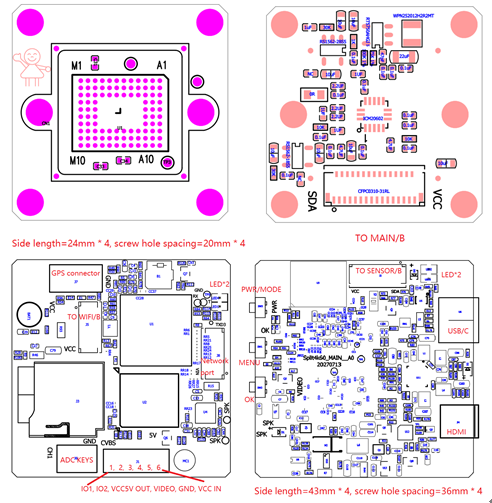

2, diagram

3, instructions

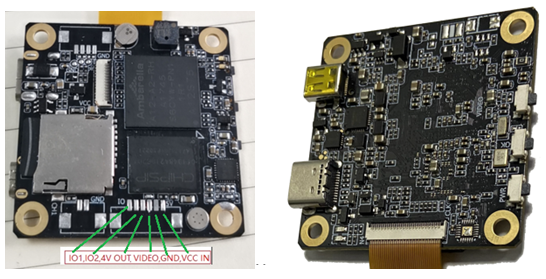

Many expansion interfaces are reserved on PCBA. It is convenient to add functions. For example, a serial port is reserved, which can be connected to the GPS module and save the GPS data to the video; ADC key interface is reserved. When the buttons on the board are not enough, many button functions can be added; Two IOs are reserved, which can be used to control motors or other equipment; Wide voltage 5-24V input and 4V output are reserved. Reserved functions can only be added when customers need them.

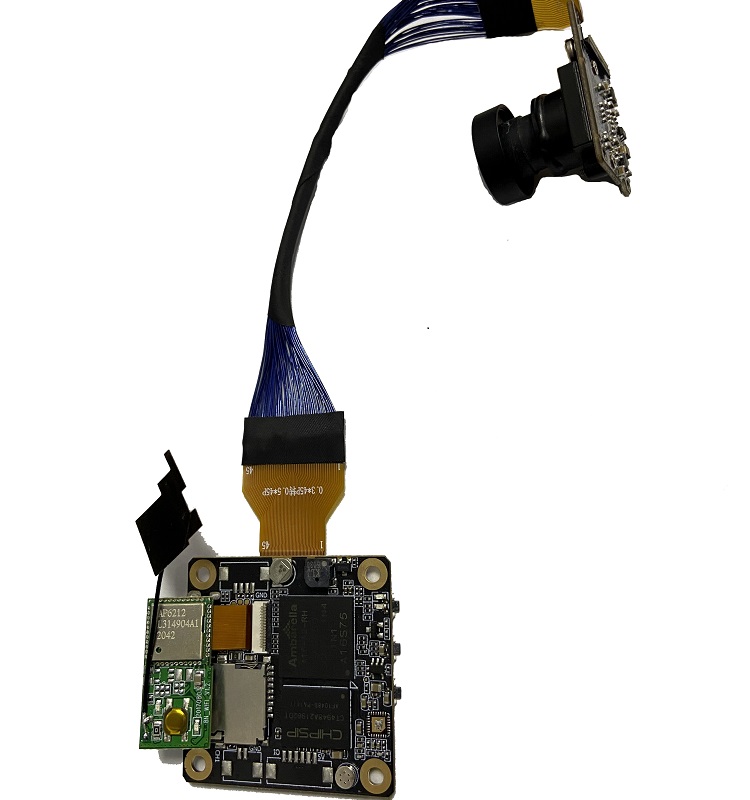

The length of the connecting cable between the lens module and the motherboard is 8cm FPC by default, and cables of different lengths can be customized. Max. 20cm.

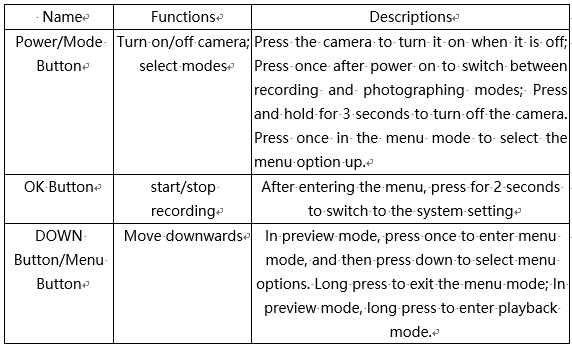

4,Button Functions
